Equipment


We know that keeping our customers’ tools in excellent working condition is very important. This is why we added a 100′ X 75′ expansion in 2006 for our tool room department. We have all the tools required to maintain our customers’ tooling. We have CNC milling machines, surface grinders, Blanchard grinders, drilling machines, lathes, etc.


Engineering Changes

We have full reverse engineering capabilities. We can digitize any sections. We create the model using our CAD (Mastercam 3D, 2020) software, and then we run the program using our CAM software. For CMM, we use Rhinoceros 7 for 3D design, reverse engineering, and 3D modeling.


CAD/CAM Products

3D Reverse Modeling

CMM

CNC Wire EDM

 CNC/Milling Machines

Surface Grinders

Lathes

Radial Drills

 Cranes

>

CAD/CAM Products

  • SolidWorks
  • Rhino 4.0
  • Rhino Cam 1.0
  • CAM 2 Measure
  • BobWire V19
  • Rapid Form
  • Mastercam 3D 2020

>



3D Reverse Modeling

  • Creaform 3D Scanner
  • V Scan software

>



CMM

  • Brown & Sharpe Global 9158
  • PCDIMIS CAD++
  • Platinum Faro Arm – 96″ radiul reach, accuracy of +/- 0.0009″

>



CNC Wire EDM

  • Kem 750a 4 axis wire EDM
  • X=17.75″, Y=29.50″, Z=11″
  • UV = /-30mm
  • Max work PC size = 25.5″x41″

>



CNC/Milling Machines

  • Bridgeport – 16″x28″x16″
  • KAFO VMC-1688 Table Size 71″ x 37″, Travels 63″ x 35″ x 28″ travel

>



Surface Grinders

  • 4 – Surface grinders capable of 24″x12″x12″
  • Blanchard grinder 12″x30″

>



Lathes

  • 3 lathes; largest one capable of 32″x160″

>



Radial Drills

  • 2 x 20″ radial drills

>



 Cranes

  • 3 x 25 ton overhead crane
  • 1 x 20 ton overhead crane
  • 1 x 2-ton jib crane
Pic 1. EDM Wire cutter, Pic 2. Boring Mills V050, Pic 3. Radial Drills,
Pic 4. KAFO KA-40 CNC, Pic 5 Takumi CNC

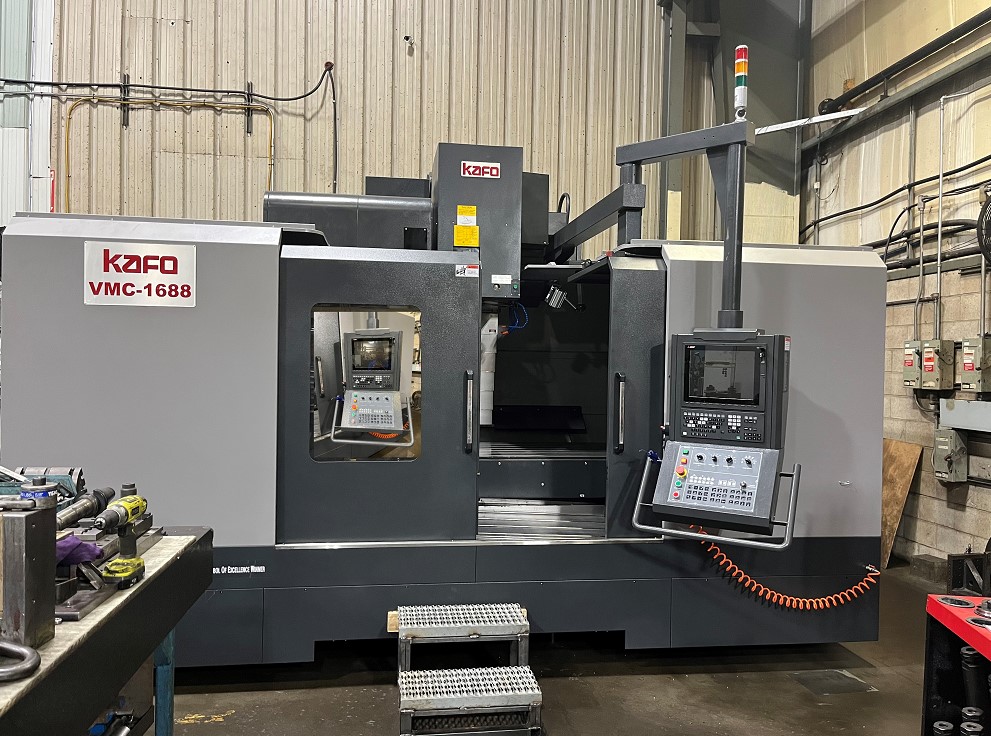

Pic 3. KAFO VMC-1688
